Extruder Caterpillar / Haul-off
DOWNLOAD LEAFLET
For applications like hose extrusion, hose printing line, braiding line etc.,
Penguin manufactures caterpillars with modular concepts for utilization in various applications like hose extrusion, hose printing line, braiding line etc.
Specifications
| Caterpillar - AC Control | Caterpillar - DC Control | |
| Application | Extruder / Cutting / Printing / Winding | |
| Output | upto 60 m / min. | upto 100 m /min. |
| Center height | 950mm adjustable | 1000 mm adjustable |
| Drive | AC Motor; 4 kW | DC Motor; 3.7 kW |
| Jaw opening | Pneumatic type | |
| Dimensions (L x B x H) in mm | 1410 x 790 x 1580 | 1730 x 905 x 1820 |
-
Caterpillar: V-Belt
-

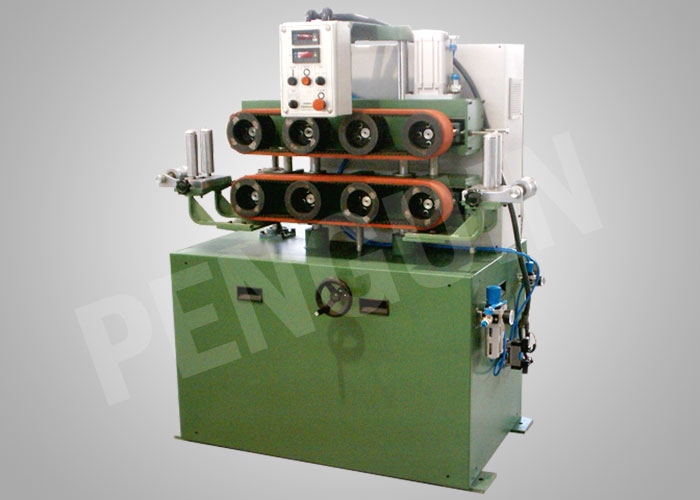

Caterpillar - Timing belt
-

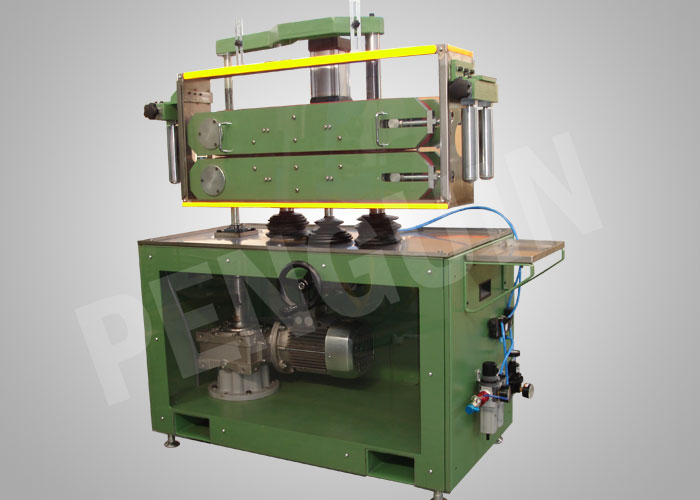

Haul-off
-

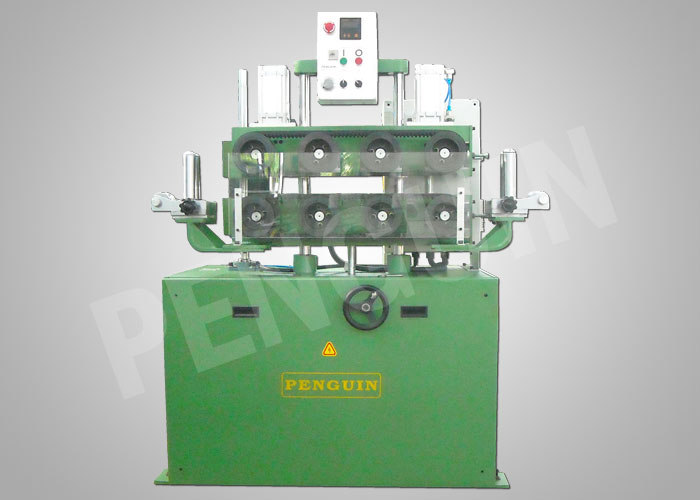

Caterpillar - Timing belt
-

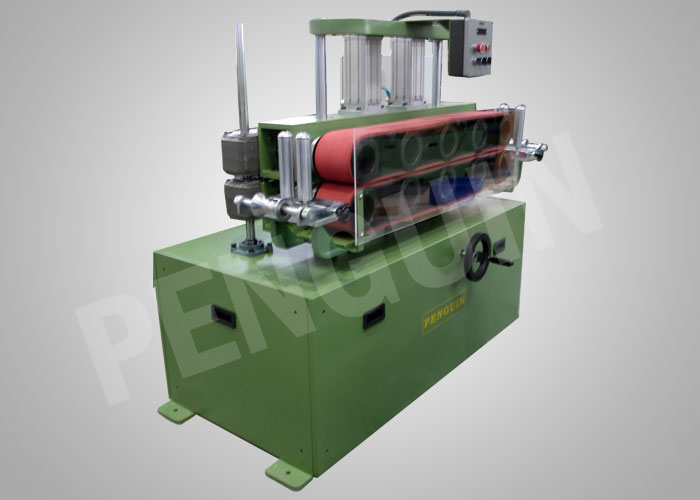

Caterpillar - Timing belt (Long length)
Features of Extruder Caterpillar
- Provision for adjusting center height according to requirement (Standard center height: 950mm)
- Max. opening of belt: 100 / 150mm
- Wide timing pulleys for trouble free operation
- Pneumatic gripping with adjustable gripping pressure
- Digital AC drive
- Adjustable inlet and outlet roller guides
- Adjustable lower belt height to accommodate different hose diameter
- Positive drive belt with pressure distribution rollers
- Caterpillar with long contact length and multiple spreader rollers to pull the hose by applying uniform pressure
