Pallet Stretch Wrapping Machine

Model: INNOVA download leaflet
DOWNLOAD LEAFLET

pallet stretch wrapping machine AC Drive

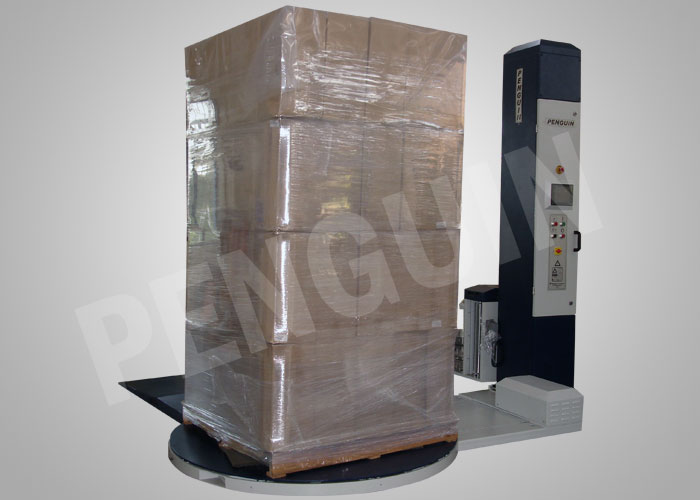

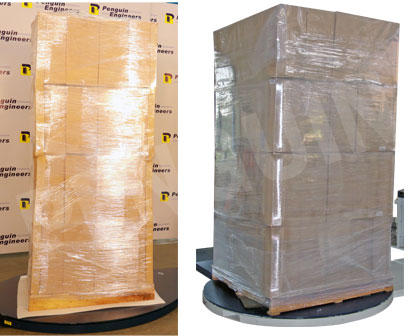

Motors packed in carton boxes being Stretch wrapped in Penguin Pallet Stretch Wrapping Machine - Model: INNOVA

With the knowledge & expertise of Pallet Stretch Wrapping Machine manufacturing for nearly 3 decades, Penguin Engineers have come out with a newly designed Pallet SWM – Model: Innova. The new model have added special features as like: AC Motor, AC Drives, Foldable Mast with Control panel assembly, built-in PLC for indicating parameters & stoppages, provision for easily shifting the machine using fork-lift, Special unique Stretch Unit enabling easy-threading of stretch film & stepless Stretch % setting. All moving chains & gears are completely covered to give total protection to the operator, suitable for Pallets of max. Size: 1.2 x 1.2 x 2.6 M & 2.0 Tons Pallet load.

Stretch Wrapping Machine – Model: Innova consists of 2600 mm height Mast with elevator for the stretch unit, duly hinged & foldable on to the 1650 mm diameter Turn Table with a capacity to hold & stretch wrap 2000 kgs of Pallet load, Powered Pre-Stretch Unit, powered by motor for stretching the LLDPE stretch film up to 300% using PLC, adjustable Ramp for easy & convenient loading and unloading of pallets with hand pallet truck, driven by 3 Nos., A.C. Motors, (T.E.F.C. type) with A.C. drives for infinite variation of speeds, life-time lubricated Gear Boxes, suitable Control panel for automatic cycle of operation, suitable built-in PLC, stop motions.Read more...

Specifications

CAPACITY
Production speed 15 - 25 pallets / hour
Pallet size 1200 x 1200 mm
Pallet height 2600 mm
Max. weight / pallet 2000 kg
MACHINE
Turn Table Diameter 1650 mm
Turn table height 80 mm
Turn table speed 1 - 10 rpm
Max.powered stretch 300%
Installed power 1.5 kW
Power supply 220V, Single Phase, 50 Hz
FILM DETAILS
Material LLDPE Stretch film
Film width 250 - 500mm
Film thickness - Range 12 - 35µ
Film thickness - used 23µ
Core diameter 76 mm
Maximum film diameter 250 mm

    Features of the machine

  • Powered pre-stretch upto 300% (1sq.m stretched to 4 sq.m) using AC motor
  • Economy in film consumption
  • State-of-the-art machine
  • Ergonomically designed
  • Variable speed A C motors
  • Modular in construction
  • Wrap tension control dancer

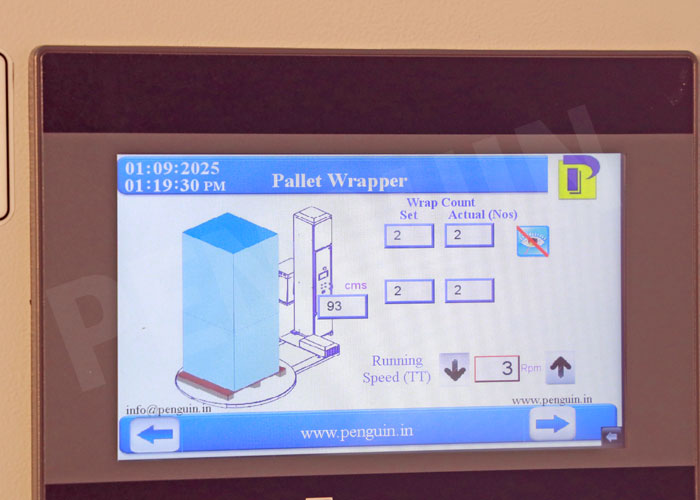

  • Touch screen HMI
  • Automatic operation
  • Top, middle and bottom reinforcement wrap
  • AC Drives & PLC with Stretch % display
  • Fully covered chain drive
  • Fault alarm messages
  • Life lubricated gear boxes
  • Foldable mast
  • Easy threading of stretch film
  • Chain cut sensor
  • Forklift lifting slots
  • Eliminates pilferages during transit & ensures tamperproof protection for end-user.

Productivity: 15 - 25 pallets / hour

Applications:

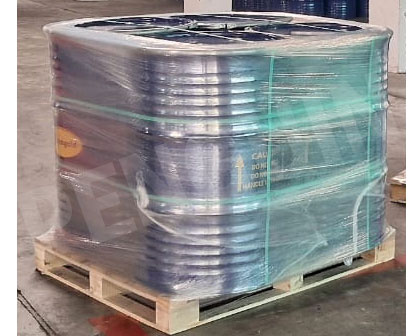

Textile yarns like cotton, polyester, jute etc., castings, canned foods, bottle crates, fertilizers or grains in sacks & bags, pails & tins,carton boxes, ceramic items, tiles and many more...


Read more on Penguin PALLET STRETCH Wrapping machine
The Stretch Wrapping Machine (Model Innova) is using 220 V, single phase, 15 Amps, & 1.5 KW power supply. The cycle of operation can be programmed and monitored through a micro-processor interface. It is easy to operate & very simple to maintain; it is sturdy & user friendly. In many cases we can load more quantity of our Goods by reducing / eliminating use of wood / corrugated boxes etc., thereby conserving natural ecology. Thus the savings in packing material costs, and the profits due to additional quantity of goods exported in each containers (due to less tare weight) pay back its cost of investment very quickly, say by the time when 25 – 30 container loads are exported using this machine.

The Model: INNOVA is highly suitable for most of the industries exporting their goods in huge volumes. Composite Textile Mills can use this machine for internal transportation of Yarn from Spinning to Weaving section, similar to transportation of TV cabinets explained in our CLASSIC model. Advantages like savings in Labour cost, in time taken for loading & unloading, clarity of Goods for customs-inspection, moisture & dust proof packing etc., attract both the exporters & importers.
