Mini Roll Wrapper - A specially designed roll stretch wrapper for retread rubber rolls, tyres, hoses, foils, spools,...
Penguin engineers
Manufactured by: Penguin Engineers
Model: Mini roll wrapper machine


Model: Mini Roll Wrapper

View the Video of Mini Roll Wrapping Machine

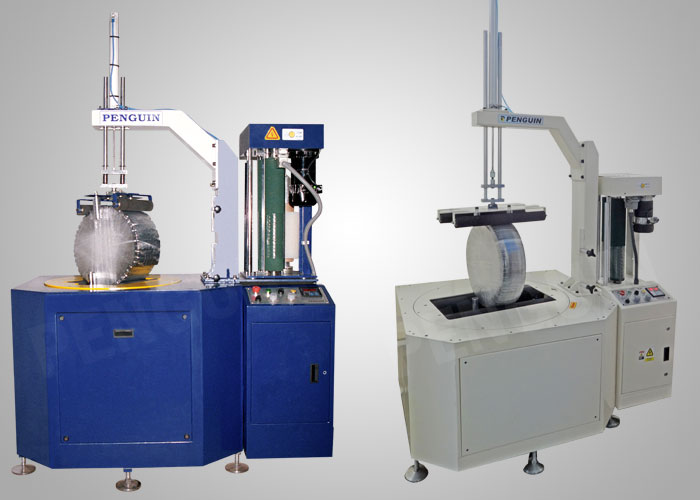

Mini roll wrapper

Penguin Mini Roll Wrapper Machine has been specially designed for packing products like Retread Rubber, Paper rolls, foils, film rolls etc. manufactured in the form of mini Rolls/ Reels at Denim cloth manufacturing.


• Penguin Mini Roll Wrapper Machine has been specially designed for packing products like Retread Rubber, Paper rolls, foils, film rolls etc. manufactured in the form of mini Rolls/ Reels.

• This is an axial wrapping machine. The machine when set to operate will apply layers of 'Pre-stretched' Film across the face diametrically and wrap them along the longitudinal axis. The longitudinally applied wraps are moved along the periphery with uniform overlap as the Mini Roll/ Reel is rotating continuously, resulting in a cocoon type of final packing.



Suitable for Foil Rolls, Flexible packages, coils, cables and Spools
Pneumatically operated holder provision for accommodating wide range of reel diameters as well as reel widths
Completely automatic cycle of operation
Powered pre-stretch unit ensures stronger packing, while consuming very low quantity of film
Counter displays consumption of film and percentage of stretch applied for each roll

Easy to operate table top model
Wide range of film materials can be used
Results in uniform and completely moisture-proof and dust-proof packing

Stretch wrapped rubber
The retreated rubber is packed in a cocoon shaped, so as to avoid moisture, dust, and also water, after packing at retread rubber manufacturing factory
Rubber wrapped
View of rubber rolls stretch wrapped at a rubber industry

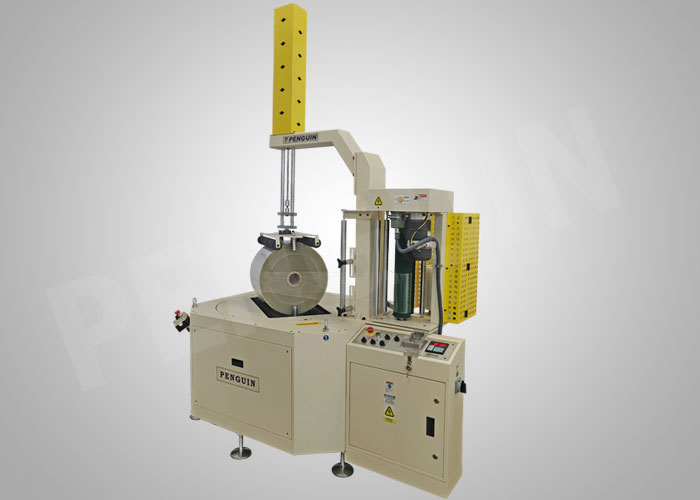

Retread rubber stretch wrapper
View of retread rubber stretch wrapping at rubber industry


Rolls/Hour 30-75 nos.
Max. Weight/ Roll 100 kgs
Range of Roll Diameter 600 mm
Range of Roll Width 100-300 mm
Turn table diameter 700 mm
Height (above GL) 750 mm
20 rpm
Maximum stretch 300%
Installed power 1.1 kW
Power supply 220V, single phase, 50Hz
Film Details
Material LLDPE - Stretch Film
Film width 250 to 500 mm
Film thickness 12-35 µ (23µ recommended)
Core diameter 76 mm
Maximum film diameter 250 mm

Read more on Penguin Mini Roll Wrapper

Retread Rubber, Paper, Film, Foils, etc., in Reel form, cannot be easily wrapped with protective wrappers manually due to their shape, weight & tenderness. Penguin Mini Roll Wrapper is suitable for the above products.

The machine uses 220V, 1-phase, 0.75 kW power supply. By the use of a pneumatically operated holder, this machine can quickly stretch wrap "Reels" of various sizes in width & diameter, weighing even up to 100 Kgs., resulting in a cocoon type axial wrapping. Electronic drives and microprocessor based cycle programmer cum monitor ensure uniform consumption of film for all the reels, once we preset. For the economical consumption of the stretch film, the inbuilt powered pre-stretch unit stretches the LLDPE stretchable cling film upto 300% before wrapping over the reel. The Counter in the Control Panel gives the Stretch % & the quantity of film consumed for each reel.

This method of packing using Stretch Film gives the reel, excellent protection from dust & moisture and ensures longer storage life. It also keeps the packing cost very low, compared to packing them with Craft Paper / Hessain cloth etc. Not only the Retread Rubber Manufacturers, but also the Industries like Paper Mills, Film Manufacturers, etc., can install this machine and save enormously in their packing costs, labour costs, time taken for packing, etc. This machine will pay back its cost very soon, because of these proven advantages.
