Coil Wrapper
Model: COIL WRAP
DOWNLOAD LEAFLET

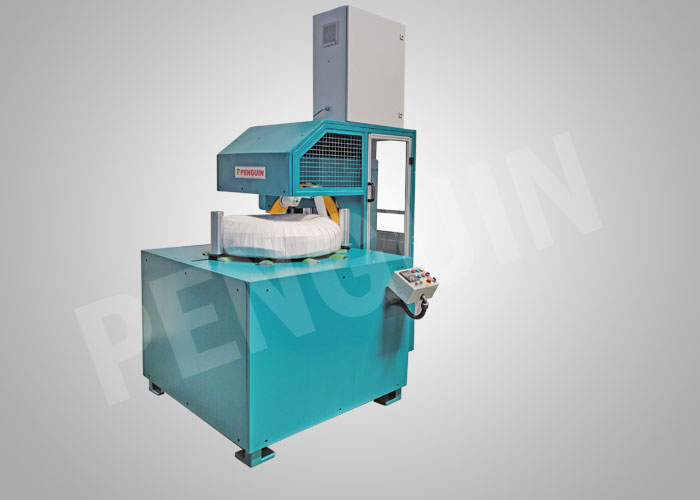

Penguin Coil Wrapper - Model: COIL WRAP R878
Penguin Coil Wrapper - Model: COIL WRAP R730
Penguin Coil Wrapper wraps the coil shaped products through the eye of the product in a spiral manner. The wrapping material is applied over the product using stretch rollers supported on a vertical ring which has a provision of passing the coil through eye horizontally.
Specifications
| DIMENSIONS OFCOIL TO PACK | |
|---|---|
| Inner diameter | Max. 600mm; Min. 400mm |
| Outer diameter | Max. 900mm; Min. 600mm |
| Height | Max. 350mm; Min. 200mm |
| Weight | Max. 150 kg |
| MACHINE | |
| Table height | 960 mm |
| Max.ring speed | 70 rpm |
| Power requirement | 440V, Three phase, 50 hZ |
| Installed power | 3.0 kW / 4.0 HP |
| FILM DETAILS | |
| Material | LLDPE Stretch film 23 - 30µ thick |
| Film width | 100 mm |
| Core diameter | 25.4 mm |
| Maximum film diameter | 150 mm |
| Number of packing rolls | 2 (one for stretch film roll; one for HDPE Woven fabric) |
- Enables torus shaped products to be wrapped through eye
- A wide range of coil sizes can be wrapped in the same machine
- Human Machine Interface
- Suitable for use with stretch film roll and HPDE Wovenfabric
- Adjustable film overlap
- Cycle time adjustable
- Indigenously made
Features of the machine
Applications:
For solid coils or flexible coils with solid core in inner diameter;Torus shaped products like Coil of hoses / wires / cables, rings, wheels & Rolls
-
Pneumatically operated holder - for various reel diameter and reel widths
-
View of Coil wrapped with HDPE Woven fabric through the eye of the coil
-
Coil wrapped with stretch film - securely wraps hoses/ wires/ cables/ wheels etc
-
Coils Wrapped - the coil wrapper enables adjustable film overlap and cycle time
